Renovation Systems
UltraFlo

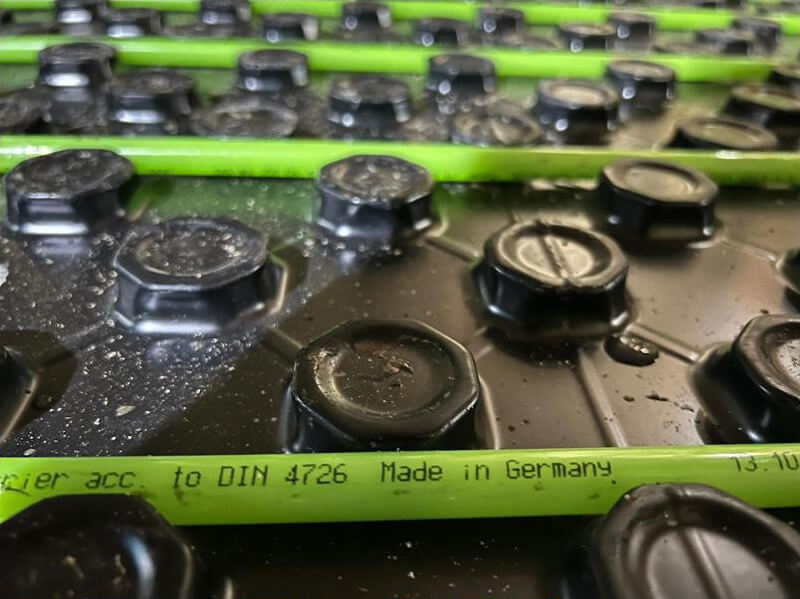

Ultraflo castellated panel solution is light enough to carry and tough enough not to be crushed under foot during installation. The castellated panel (a bit like an upside down eggbox) has been specifically designed with larger raised areas to make it stronger than other systems on the market.

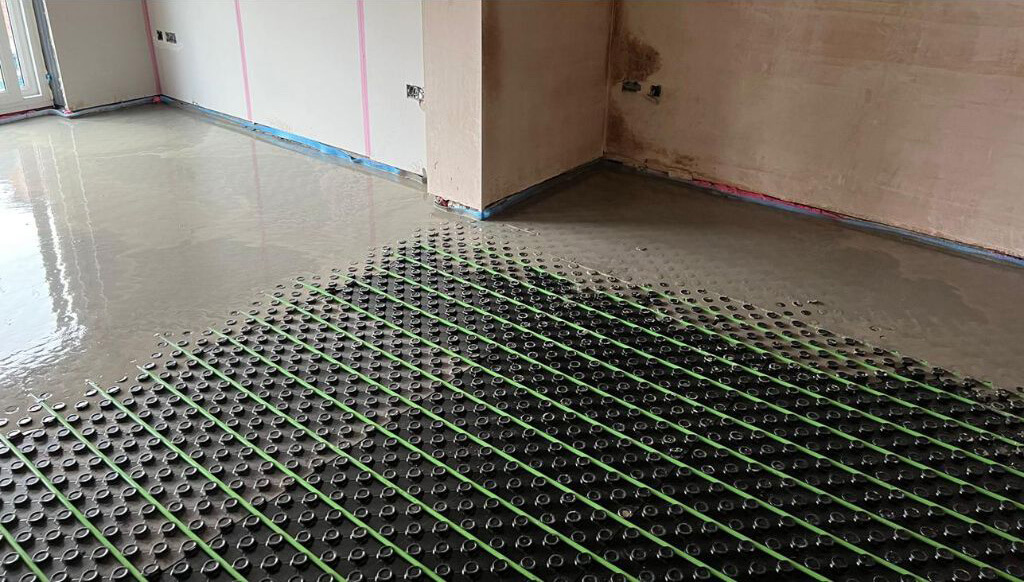

Incorporating a 12mm Ultraflex pipe and supplied with a specialist self-levelling compound. Ultraflo has an overall height build-up of just 22mm and delivers high heat outputs that make it ideal for heating large, open plan spaces or buildings with high ceilings.

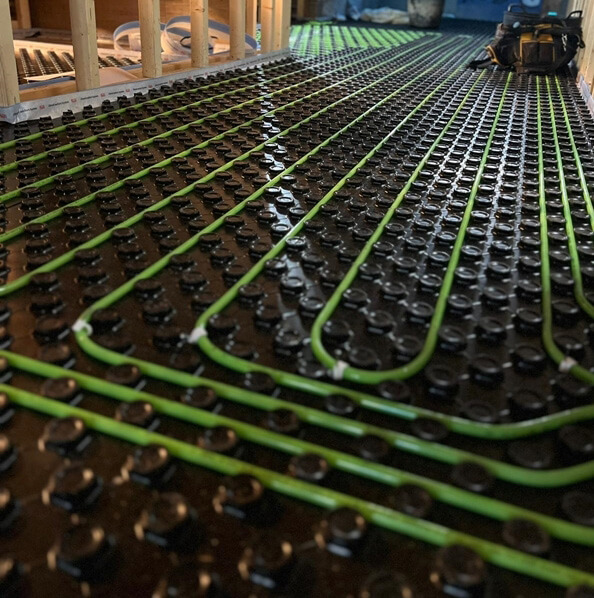

UltraFlo, our high output overlay system. UltraFlo incorporates 16mm tall plastic panels which are castellated. These castellations are made to allow pipe spacings at 50mm intervals, both horizontally and vertically through the panel. The panels are also designed this way to minimise un-used space, so when screeding, excess will not be lost into voids. 12mm UltraFlex pipe provides outputs of up to 150W/m2 when paired with our supplied high output, heat-transfer screed.
High output, lightweight castellated panel solution
- Tough castellated panel made from 100% recycled coat hangers
- High heat output renovation solution
- Lightweight and easy to install
Technical Information
| Diameter | 12mm |
| Colour | Green |
| Length | 240m |
| Guarantee | 50 Years |
